Protector Installation Note

Courtesy of MAZDA MOTORS CORP.

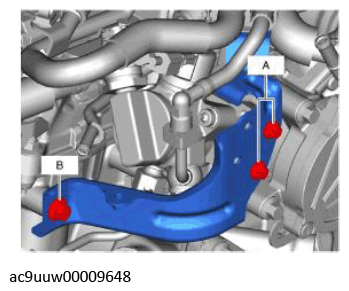

Tightening torque

A: 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

B: 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}

Courtesy of MAZDA MOTORS CORP.

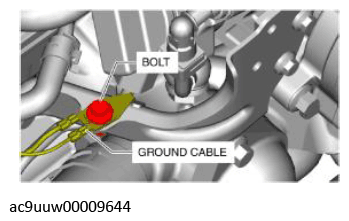

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
