Quick Release Connector Removal/Installation: Installation

NOTE:

If the quick release connector O-ring is damaged or has slipped, replace the fuel hose.
A checker tab is integrated with the quick release connector for new fuel hoses. Remove the checker tab from the quick release connector after the connector is completely engaged with the fuel pipe.

Inspect the fuel hose and fuel pipe sealing surface for damage and deformation.
- If there is any malfunction, replace it with a new one.
Apply a small amount of clean engine oil to the sealing surface of the fuel pipe.

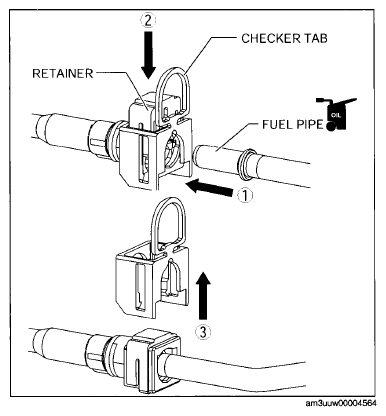

Install the quick release connector.

Courtesy of MAZDA MOTORS CORP.
- Insert the fuel pipe straight to the end of the quick release connector.
- Push down the retainer using a finger.
  - If the retainer cannot be pushed down, push the fuel pipe further to the quick release connector.
Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
