Transfer Removal/Installation: Notes

CAUTION:

Performing the following procedures could cause an open circuit in the front ABS wheel speed-sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
Remove the heat shield.

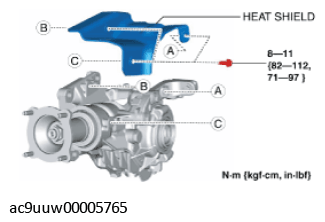

Fig 1: Heat Shield Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.
Warm up the engine and transaxle, inspect for oil leakage, and inspect the transfer operation.

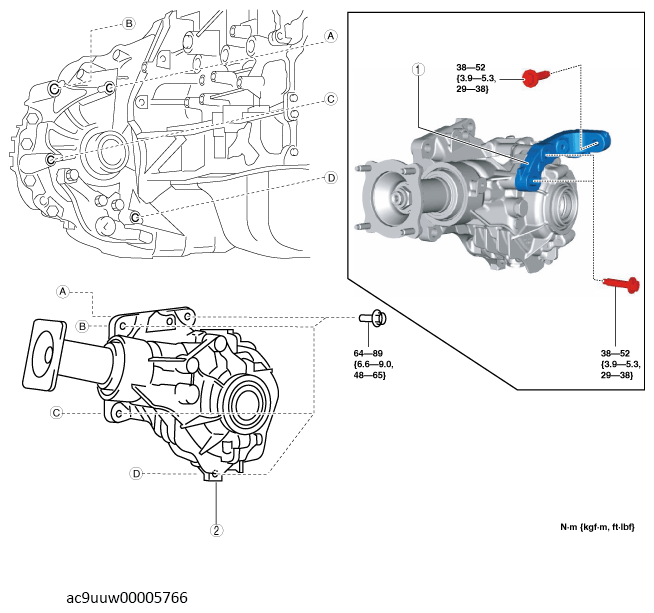

Fig 2: Transfer Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Transfer bracket (See TRANSFER BRACKET INSTALLATION NOTE .)
2	Transfer
