Transfer Bracket Installation Note

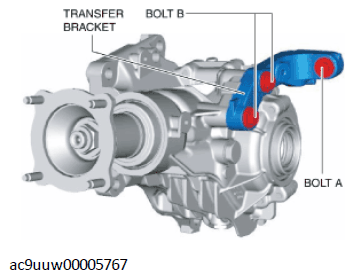

Install the transfer bracket to the transfer and temporarily tighten bolts A and B.

Courtesy of MAZDA MOTORS CORP.
Completely tighten bolts A and B in order.
Tightening torque

38-52 N.m {3.9-5.3kgf.m, 29-38 ft.lbf}
