Indicator Removal Note

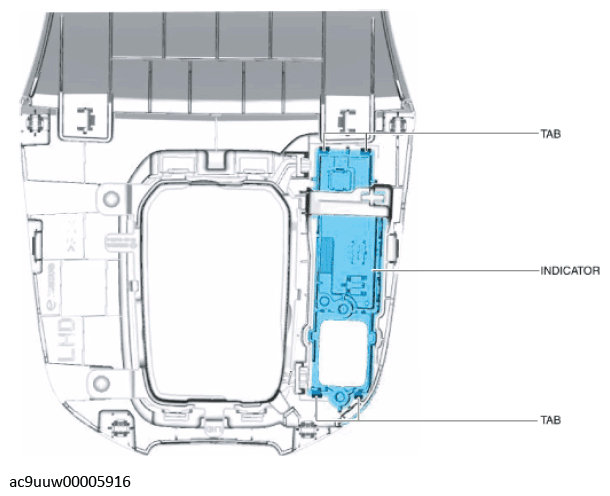

Detach tabs shown in the figure and remove the indicator.
Courtesy of MAZDA MOTORS CORP.
