Indicator Removal/Installation: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Selector lever knob (See Selector Lever Component Removal/Installation .)
2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

Install in the reverse order of removal.

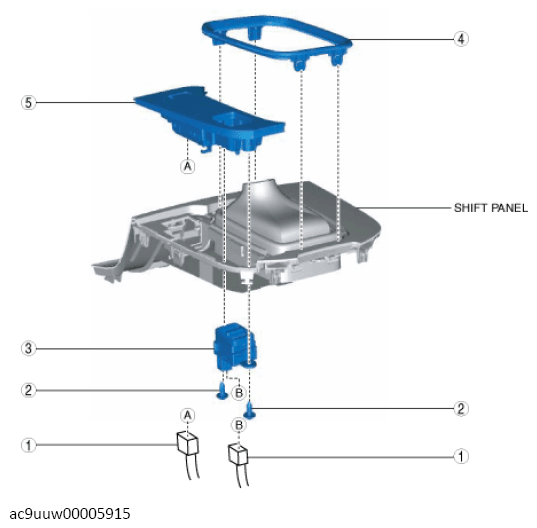

G13699798

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Connector
2	Screw
3	Drive selection switch
4	Indicator panel
5	Indicator (See Indicator Removal Note .)
