Selector Cable Adjustment: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts.
    1. Selector lever knob (See Selector Lever Component Removal/Installation .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Shift the selector lever to the P position.
  4. Pull out the safety lock in the direction of the arrow (1) shown in the figure, pull out the lock piece in the direction of the arrow (2) shown in the figure, and release the lock. (See Selector cable (selector lever side) installation note .)
    G11441233Courtesy of MAZDA MOTORS CORP.

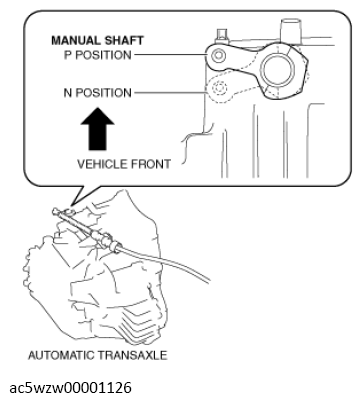

  5. Set the manual shaft to the P position.
    G13112809Courtesy of MAZDA MOTORS CORP.

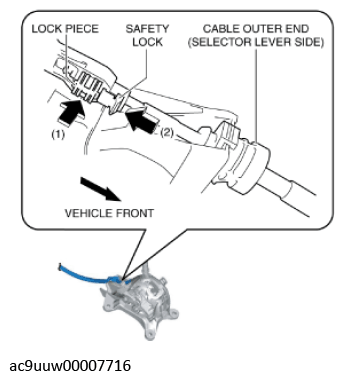

  6. Press in the lock piece in the direction of the arrow (1) shown in the figure, press in the safety lock in the direction of the arrow (2) shown in the figure, and lock it.
    G11441241Courtesy of MAZDA MOTORS CORP.
  7. Perform the procedure in the reverse order of Step  1 to  5 to install the removed part.
  8. Perform the selector lever inspection. (See SELECTOR LEVER INSPECTION .)
