Selector Cable Removal/Installation: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Perform the following procedure to remove the selector cable (selector lever side).
    1. Remove the selector lever knob. (See Selector Cable Removal/Installation .)
    2. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
    6. Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)

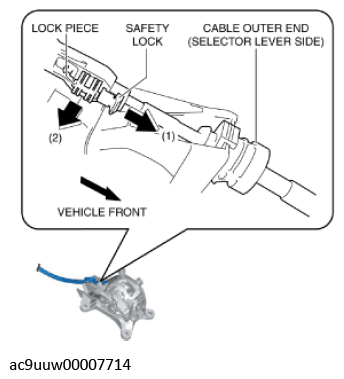

    7. Pull out the safety lock in the direction of the arrow (1) shown in the figure, pull out the lock piece in the direction of the arrow (2) shown in the figure, and release the lock. (See Selector cable (selector lever side) installation note .)
      G11441233Courtesy of MAZDA MOTORS CORP.

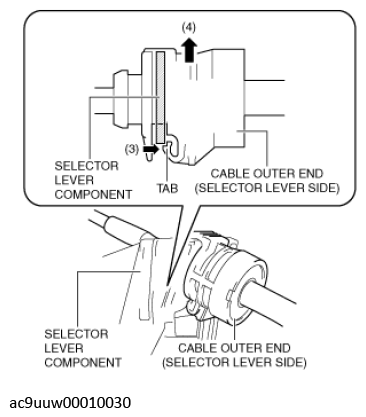

    8. While pressing the cable outer end tab (selector lever side) in the direction of the arrow (3) shown in the figure, lift up cable outer end (selector lever side) in the direction of the arrow (4) shown in the figure to detach the cable outer end tab (selector lever side) from the selector lever component.
      G12244867Courtesy of MAZDA MOTORS CORP.
    9. Disconnect the cable outer end (selector lever side) from the selector lever component.

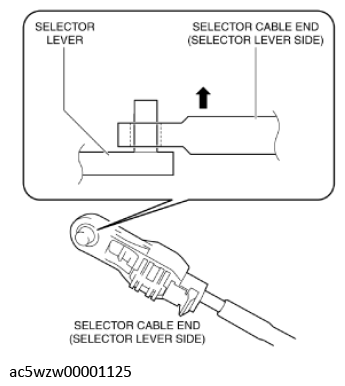

    10. Disconnect the selector cable end (selector lever side) from the selector lever.
      G11441235Courtesy of MAZDA MOTORS CORP.
  3. Perform the following procedure to remove the selector cable (transaxle side).
    1. Remove the air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    2. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION .)

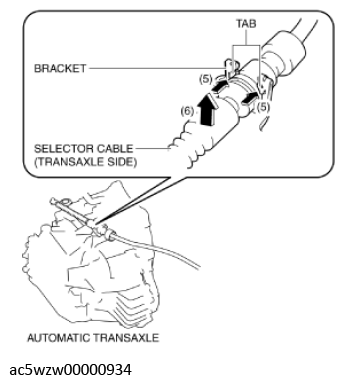

    3. While pressing the bracket tab in the direction of the arrow (5) shown in the figure, lift up the cable outer end (transaxle side) in the direction of the arrow (6) shown in the figure to detach the bracket tab from the cable outer end (transaxle side).
      G11441236Courtesy of MAZDA MOTORS CORP.
    4. Disconnect the cable outer end (transaxle side) from the bracket. (See Cable outer end (transaxle side) installation note .)
    5. Remove the clip from the selector cable end (transaxle side). (See Selector cable end (transaxle side) installation note .)
      CAUTION:
      • Pull the clip within the range shown in the figure. If the clip is pulled excessively, it could deform and no longer function.
      G12233204Courtesy of MAZDA MOTORS CORP.
      G09075595Courtesy of MAZDA MOTORS CORP.

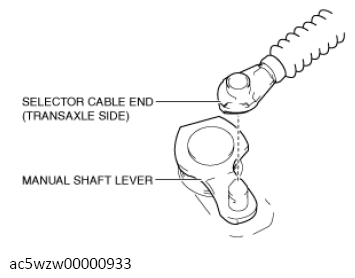

    6. Disconnect the selector cable end (transaxle side) from the manual shaft lever.
    G11069284Courtesy of MAZDA MOTORS CORP.

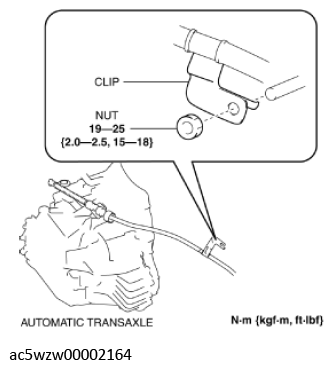

  4. Disconnect the clip as shown in the figure and remove the nut.
    Fig 1: Automatic Transaxle, Clip And Nut With Torque Specification
    G11441237Courtesy of MAZDA MOTORS CORP.

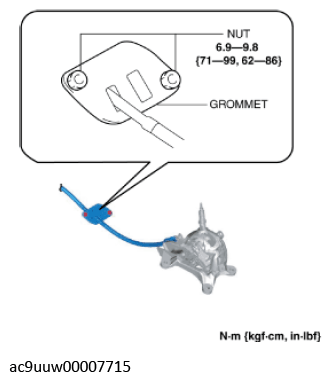

  5. Disconnect the grommet as shown in the figure and remove the nuts.
    Fig 2: Grommet And Nuts With Torque Specification
    G11441238Courtesy of MAZDA MOTORS CORP.
  6. Pull out the selector cable from inside the cabin and remove it.
  7. Install in the reverse order of removal.
