Drive Selection Switch Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

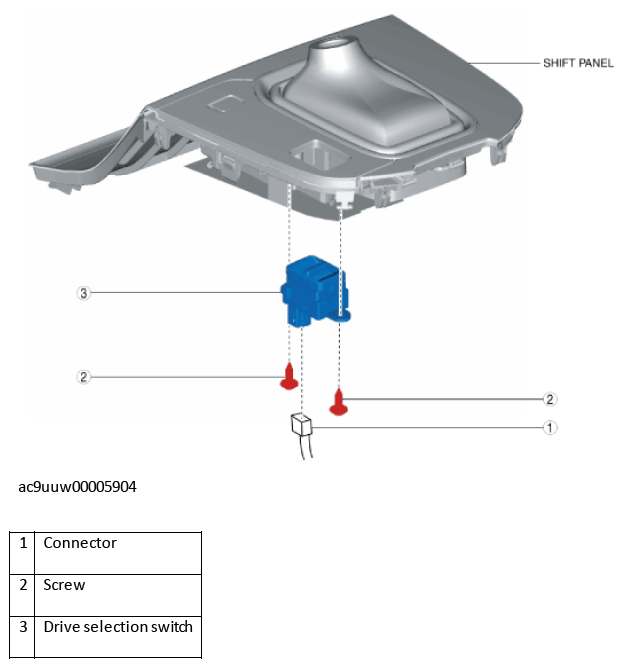

Remove in the order indicated in the table.
Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION
