Intake CMP Sensor

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Disconnect the intake CMP sensor connector.
  5. Remove the bolt.

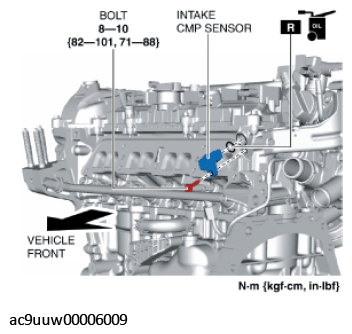

    Fig 1: Intake Camshaft Position Sensor Bolt With Torque Specification
    G11436066Courtesy of MAZDA MOTORS CORP.
  6. Remove the intake CMP sensor.
  7. Install in the reverse order of removal.
