Specification (Reference)

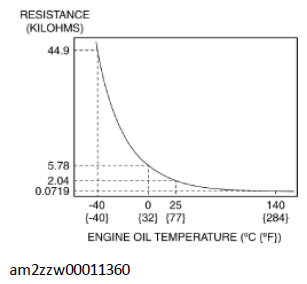

Engine oil temperature (°C {°F}) Resistance (Kilohms)
-40 {-40} Approx. 44.9
0 {32} Approx. 5.78
25 {77} Approx. 2.04
140 {284} Approx. 0.0719
G11436098Courtesy of MAZDA MOTORS CORP.
