Intake CMP Sensor

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seal cover (See SEAL COVER REMOVAL/INSTALLATION .)
    2. Front suspension tower bar (Vehicles with front suspension tower bar) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)
    3. Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Disconnect the intake CMP sensor connector.
  4. Remove the bolt.

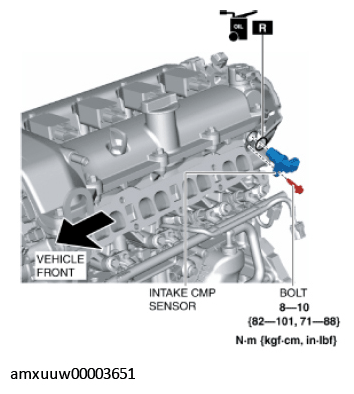

    Fig 1: Intake Camshaft Position Sensor Bolt With Torque Specification
    G11274154Courtesy of MAZDA MOTORS CORP.
  5. Remove the intake CMP sensor.
  6. Install in the reverse order of removal.
