Continuity Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [M66M-D] .)

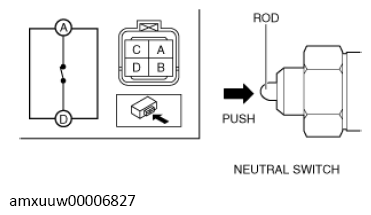

3. Inspect for continuity between neutral switch terminal A and D.

   Courtesy of MAZDA MOTORS CORP.

   • If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [M66M-D] .)

Specification
