Fuel Distributor Installation Note

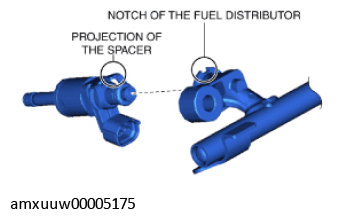

- Install the fuel distributor to the fuel injectors while aligning the projection of the spacer to the notch of the fuel distributor.
- Temporarily tighten the fuel distributor installation bolts until their heads contact the fuel distributors.

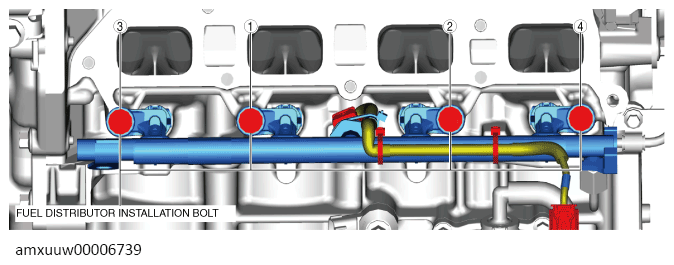

- Turn the fuel distributor installation bolts a half a turn in the order shown in the figure.
- Turn the fuel distributor installation bolts another half a turn in the order shown in the figure (one turn including the half turn in Step 3).
- Tighten the fuel distributor installation bolts in the order shown in the figure.
Fuel distributor installation bolt tightening torque
20-26 N-m {2.1-2.6 kgf.m, 15-19 ft.lbf}
- Install the high pressure fuel pipe. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)
