Fuel Tank Installation Note

Install the following parts as a single unit:
- Fuel tank
- Insulator
- Fuel pump unit
- Pressure control valve (U.S.A. and CANADA specs.)
- Evaporative hose No. 2 (Except U.S.A. and CANADA specs.)

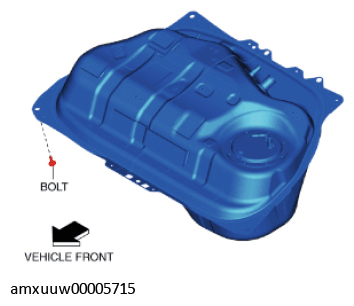

Temporarily tighten the bolt as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

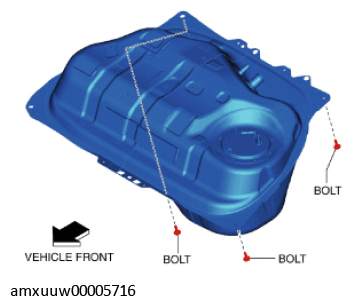

Tighten the bolt as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

22-30 N.m {2.3-3.0 kgf.m, 17-22 ft.lbf}

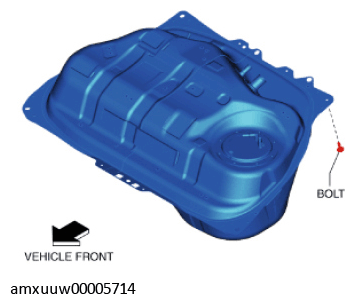

Tighten the bolt as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

22-30 N.m {2.3-3.0 kgf.m, 17-22 ft.lbf}
