Insulator Removal Note

NOTE:
  • The insulator is installed using rivets.
  1. Push out the mandrel using a hammer and punch (2-2.8 mm {0.08-0.11 in} diameter).
    G11274442Courtesy of MAZDA MOTORS CORP.

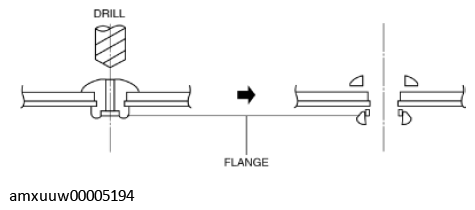

  2. Remove the flange using a drill (5 mm {0.2 in} drill bit).
    G11274443Courtesy of MAZDA MOTORS CORP.
