Symptom Troubleshooting - Engine Control
>>
Foreword
>>
Troubleshooting Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

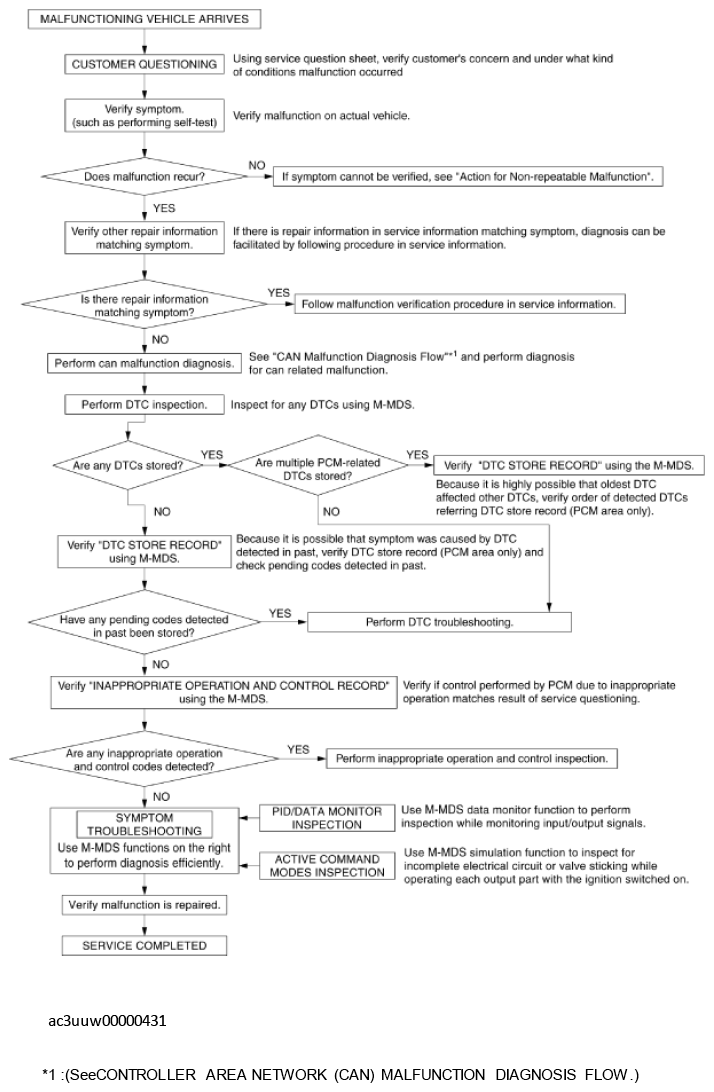

Troubleshooting Procedure
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
