Drive Selection Switch Removal/Installation: Notes

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
3. Remove the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)

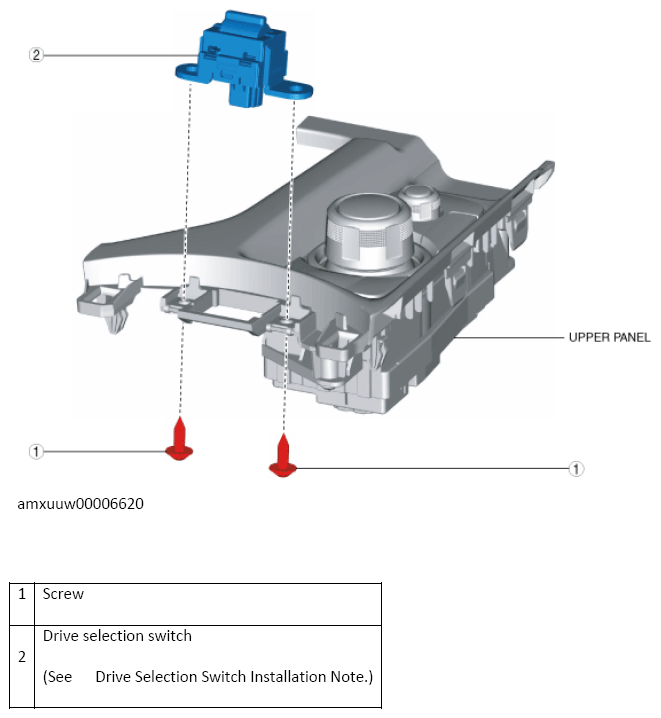

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.
