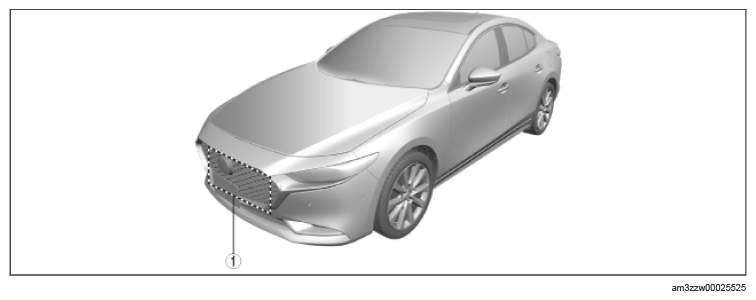

Active Air Shutter Location Index

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component No.	Refer to
1	Active air shutter (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .) (See ACTIVE AIR SHUTTER INSPECTION .)
