Power cut switch

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

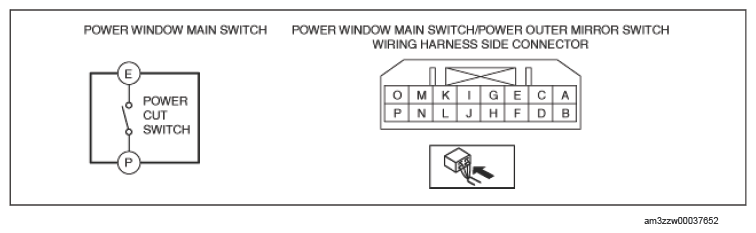

  3. Verify that the continuity between the power window main switch terminals is as indicated in the table.
G14583118Courtesy of MAZDA MOTORS CORP.
G14583119Courtesy of MAZDA MOTORS CORP.
