Front Power Window Motor Inspection: RH
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Disconnect the power window motor connector. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)

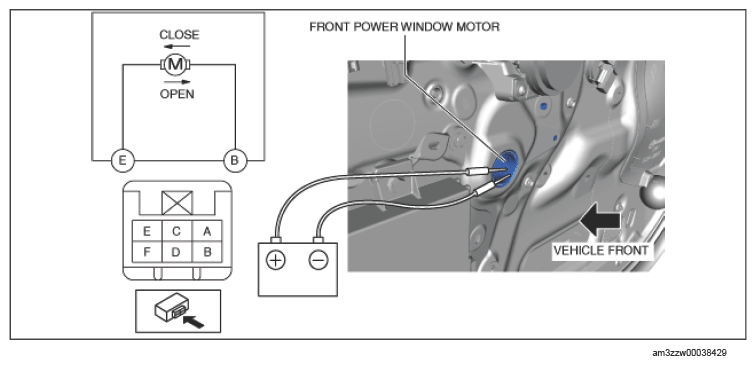

- Apply battery positive voltage and connect the ground to power window motor terminals B and E, and then inspect the power window motor operation.
| B+ Terminal | Ground Terminal | Operation |
|---|---|---|
| B | E | Close |
| E | B | Open |
- If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
