Front side switch (RF)

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

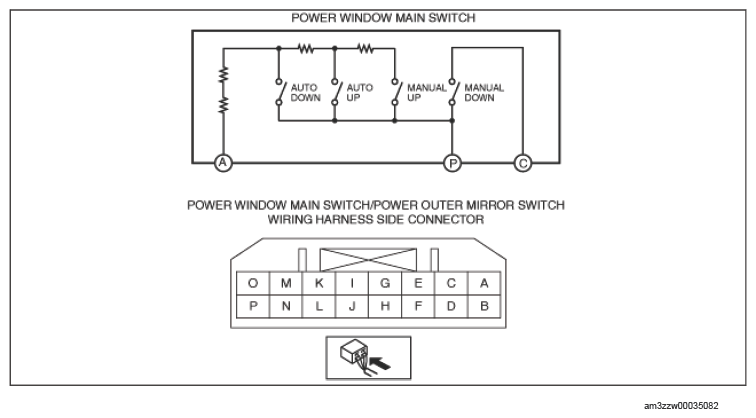

Verify that the resistance between power window main switch terminals A and P is as indicated in the table.

G14583114

Courtesy of MAZDA MOTORS CORP.

Switch Position	Resistance (ohm)	Terminal
Auto Down	445.5-454.5	A-P
Auto Up	683.1-696.9
Manual Up	1069.2-1090.8

If not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

Verify that the continuity between the power window main switch terminals is as indicated in the table.

G14583115

Courtesy of MAZDA MOTORS CORP.

If not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
