Standard (Reference)
-: Not applicable

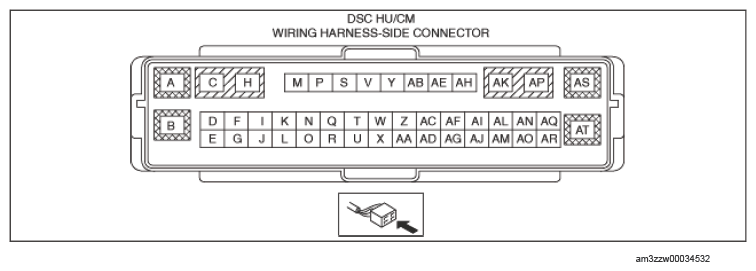

| Terminal | Signal name | Connected to | Measured item | Measured terminal (measurement condition) | Standard | Inspection item(s) |
|---|---|---|---|---|---|---|
| A | Ground | Ground point | Continuity | A-Ground point | Continuity detected |
|
| B | - | - | - | |||
| C | Electric parking brake motor gear unit (LH) | Electric parking brake motor gear unit (LH) | Continuity | C-Electric parking brake motor gear unit (LH) terminal B | Continuity detected |
|
| D | - | - | - | |||
| E | - | - | - | - | - | - |
| F | - | - | - | - | - | - |
| G | - | - | - | - | - | - |
| H | Electric parking brake motor gear unit (LH) | Electric parking brake motor gear unit (LH) | Continuity | H-Electric parking brake motor gear unit (LH) terminal A | Continuity detected |
|
| I | Brake fluid level sensor | Brake fluid level sensor | Continuity | I-brake fluid level sensor terminal A | Continuity detected |
|
| J | CAN1_L | CAN module | This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection. | |||
| K | - | - | - | - | - | - |
| L | CAN1_H | CAN module | This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection. | |||
| M | RR wheel-speed sensor | ABS wheel-speed sensor (RR) | Continuity | M-ABS wheel-speed sensor (RR) terminal | Continuity detected |
|
| N | - | - | - | - | - | - |
| O | - | - | - | - | - | - |
| P | RR wheel-speed sensor | ABS wheel-speed sensor (RR) | Continuity | P-ABS wheel-speed sensor (RR) terminal | Continuity detected |
|
| Q | - | - | - | - | - | - |
| R | Stop signal | Electrical supply unit | Continuity | R-Electrical supply unit terminal 3L | Continuity detected |
|
| S | LF wheel-speed sensor | ABS wheel-speed sensor (LF) | Continuity | S-ABS wheel-speed sensor (LF) terminal B | Continuity detected |
|
| T | - | - | - | - | ||
| U | - | - | - | |||
| V | LF wheel-speed sensor | ABS wheel-speed sensor (LF) | Continuity | V-ABS wheel-speed sensor (LF) terminal A | Continuity detected |
|
| W | Electric parking brake switch | Electric parking brake switch | Continuity | W-Electric parking brake switch terminal H | Continuity detected |
|
| X | - | - | - | - | ||
| Y | LR wheel-speed sensor | ABS wheel-speed sensor (LR) | Continuity | Y-ABS wheel-speed sensor (LR) terminal B | Continuity detected |
|
| Z | - | - | - | - | - | - |
| AA | - | - | - | - | - | - |
| AB | LR wheel-speed sensor | ABS wheel-speed sensor (LR) | Continuity | AB-ABS wheel-speed sensor (LR) terminal D | Continuity detected |
|
| AC | - | - | - | - | - | - |
| AD | Electric parking brake switch indicator light | Electric parking brake switch indicator light (built into electric parking brake switch) | Continuity | AD-Electric parking brake switch terminal F | Continuity detected |
|
| AE | RF wheel-speed sensor | ABS wheel-speed sensor (RF) | Continuity | AE-ABS wheel-speed sensor (RF) terminal B | Continuity detected |
|
| AF | Electric parking brake switch | Electric parking brake switch | Continuity | AF-Electric parking brake switch terminal | Continuity detected |
|
| AG | Power supply (system) | IG1 relay No. 2 | Voltage | Ignition switched ON (engine off). | B+ |
|
| Switch the ignition off. | 1 V or less | |||||
| AH | RF wheel-speed sensor | ABS wheel-speed sensor (RF) | Continuity | AH-ABS wheel-speed sensor (RF) terminal A | Continuity detected |
|
| AI | Electric parking brake switch | Electric parking brake switch | Continuity | AI-Electric parking brake switch terminal I | Continuity detected |
|
| AJ | - | - | - | - | - | - |
| AK | Electric parking brake motor gear unit (RH) | Electric parking brake motor gear unit (RH) | Continuity | AK-Electric parking brake motor gear unit (RH) terminal A | Continuity detected |
|
| AL | Electric parking brake switch | Electric parking brake switch | Continuity | AL-Electric parking brake switch terminal | Continuity detected |
|
| AM | - | - | - | - | - | - |
| AN | CAN2_L | CAN module | This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection. | |||
| AO | - | - | - | - | ||
| AP | Electric parking brake motor gear unit (RH) | Electric parking brake motor gear unit (RH) | Continuity | AP-Electric parking brake motor gear unit (RH) terminal B | Continuity detected |
|
| AQ | CAN2_H | CAN module | This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection. | |||
| AR | - | - | - | - | - | - |
| AS | Power supply (pump moter operation) | Battery | Voltage | Under any condition | B+ |
|
| AT | Power supply (solenoid operation) |
Battery | Voltage | Under any condition | B+ |
|
