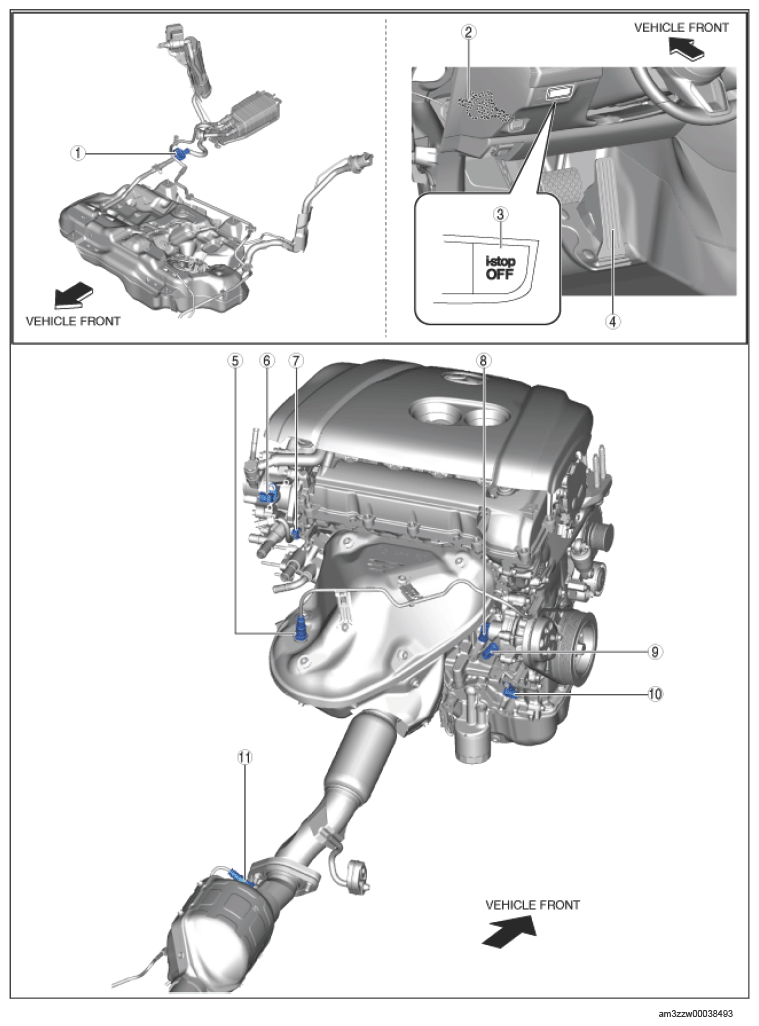

| 1 |
Fuel tank pressure sensor
(See FUEL TANK PRESSURE SENSOR INSPECTION .)
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .) |
| 2 |
Clutch stroke sensor (MTX)
(See CLUTCH STROKE SENSOR INSPECTION .) |
| 3 |
i-stop OFF switch (Vehicle with i-stop)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .) |
| 4 |
APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .) |
| 5 |
A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION .) |
| 6 |
Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .) |
| 7 |
ECT sensor No. 2
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 8 |
Engine oil temperature sensor/Engine oil pressure sensor
(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION .)
(See ENGINE OIL PRESSURE SENSOR INSPECTION .) |
| 9 |
ECT sensor No. 1
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 10 |
CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .) |
| 11 |
HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION .) |
