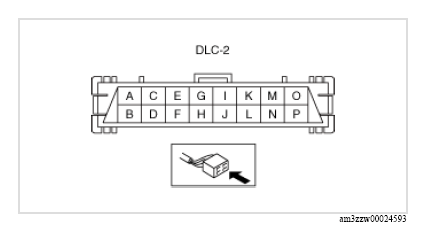

Data Link Connector (DLC) -2
- A DLC-2 compliant with the International Standardization Organization (ISO) standard has been adopted.
- Connector shapes and terminal layouts as specified by ISO 15031-3 (SAE J1962) have been adopted, and the terminals are 16-pin.
- : Not applicable
| Terminal | Function |
|---|---|
| A | Terminal for battery power supply |
| B | Terminal for headlight auto leveling system initial setting |
| C | SAS control module |
| D | - |
| E | Terminal LO for HS-CAN |
| F | Terminal HI for HS-CAN |
| G | - |
| H | Ground terminal for serial communication |
| I | - |
| J | Body ground terminal |
| K | - |
| L | - |
| M | - |
| N | - |
| O | - |
| P | - |
