Quick Check
- Connect the M-MDS to the DLC-2.
- Switch the ignition ON (engine off or on).
- Perform the following procedure using the M-MDS.
- Press [Start] for the vehicle identification.
- Press the [Quick Check] tab.
- Verify DTCs following the instructions on the screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection after recording the freeze frame data/snapshot data.
NOTE:- Each module condition can be determined by the color of the displayed module.
- Green: No DTCs
- Red: Communication Error
- Blue: No Communication or Not Equipped
- Orange: DTC(s) exist
- Gray: DTC Not Supported
- If a module displayed in orange (DTC(s) exist) is selected, the DTCs stored in the selected module are displayed in a list.

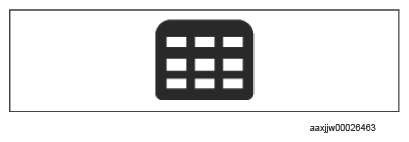

- If the following icon is selected, the DTCs stored in all the modules are displayed in a list.

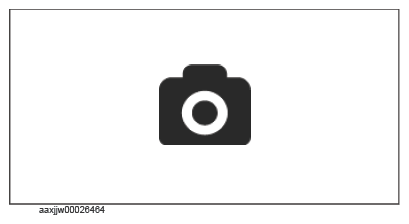

- If the following icon is selected on the DTC list screen, the freeze frame data/snapshot data relative to the applicable DTC is displayed.
