Simulation Inspection: Notes

Connect the M-MDS to the DLC-2.
Switch the ignition ON (engine off or on).
Perform the following procedure using the M-MDS.
1. Press [Start] for the vehicle identification.
2. Press the [Toolbox] tab.
3. Press the [Diagnosis] icon.
4. Press [Run] for Data Logger.
Select the applicable module according to the module table. (See Module Table .)
Select the applicable simulation item.
NOTE:

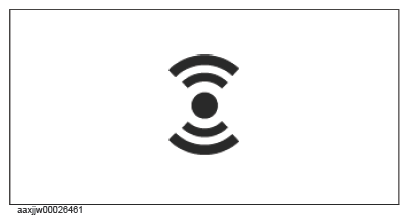

- The simulation function can only be implemented on items displaying the following icon.
Courtesy of MAZDA MOTORS CORP.
Inspect the operation of each part according to the directions on the screen.
NOTE:
- If the operation of the output part cannot be verified as a result of implementing the simulation function, an open/short circuit, sticking, or operation malfunction with the output part can be considered.
