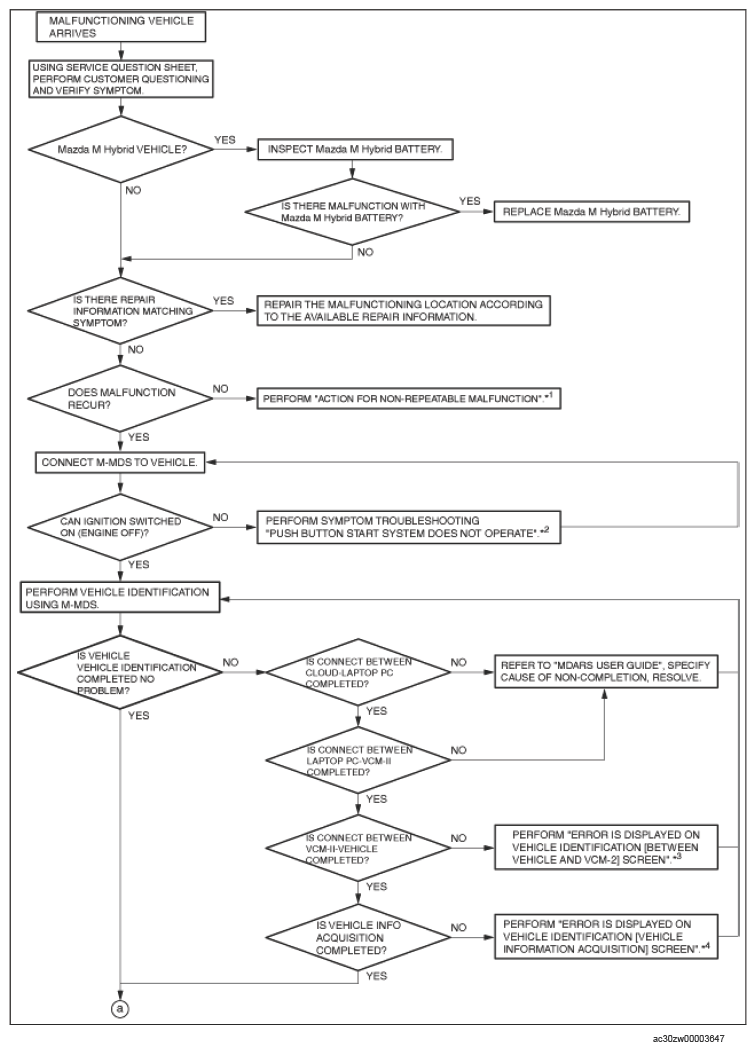

Troubleshooting Procedure

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

*1: (See Action for Non-repeatable Malfunction .)

*2: (See PUSH BUTTON START SYSTEM DOES NOT OPERATE [SECURITY AND LOCKS] .)

*3: (See ERROR IS DISPLAYED ON VEHICLE IDENTIFICATION [BETWEEN VEHICLE AND VCM-2] SCREEN [(US)] .)

*4: (See ERROR IS DISPLAYED ON VEHICLE IDENTIFICATION [VEHICLE INFORMATION ACQUISITION] SCREEN [(US)] .)

*5: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(US)] .)
