Quick Diagnostic Chart

G14584639

Courtesy of MAZDA MOTORS CORP.

G14584640

Courtesy of MAZDA MOTORS CORP.

G14584641

Courtesy of MAZDA MOTORS CORP.

G14584642

Courtesy of MAZDA MOTORS CORP.

G14584643

Courtesy of MAZDA MOTORS CORP.

G14584644

Courtesy of MAZDA MOTORS CORP.

G14584645

Courtesy of MAZDA MOTORS CORP.

G14584646

Courtesy of MAZDA MOTORS CORP.

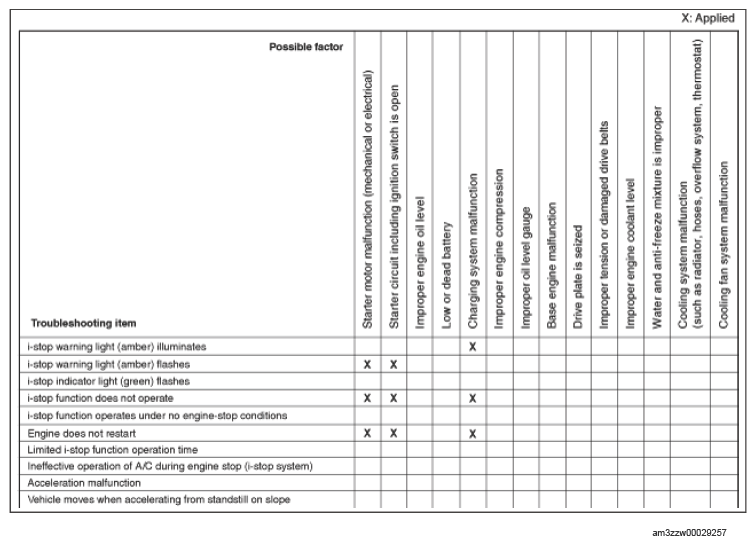

G14584653

Courtesy of MAZDA MOTORS CORP.

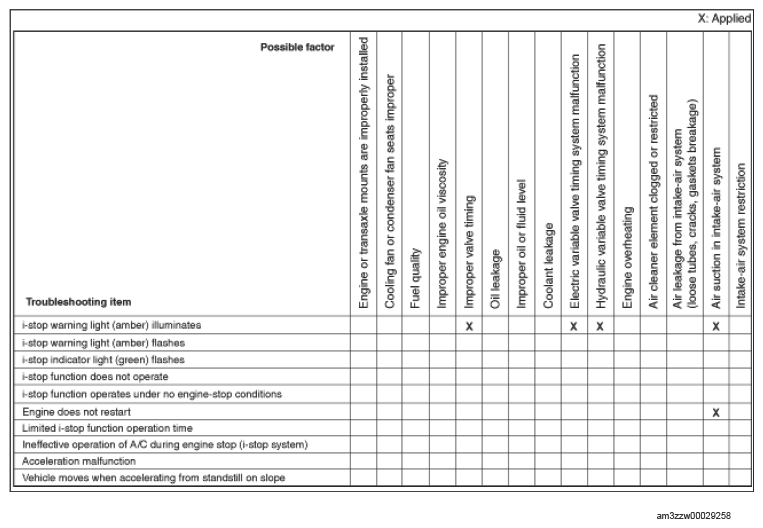

G14584654

Courtesy of MAZDA MOTORS CORP.

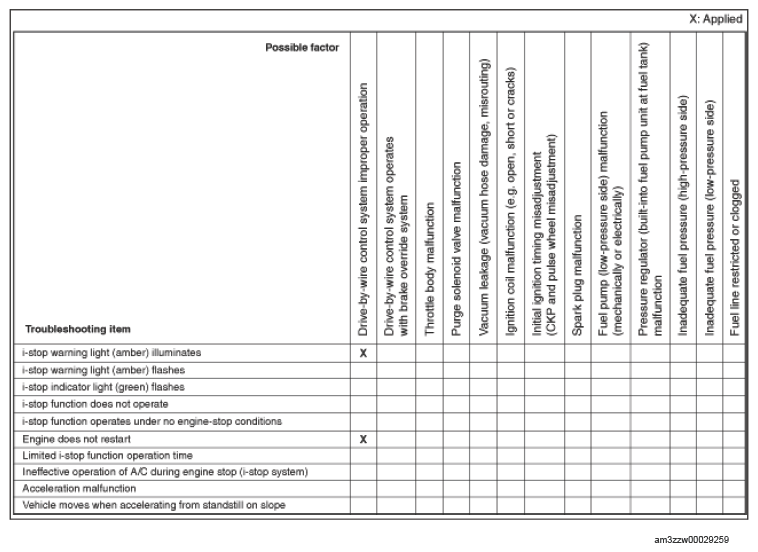

G14584655

Courtesy of MAZDA MOTORS CORP.

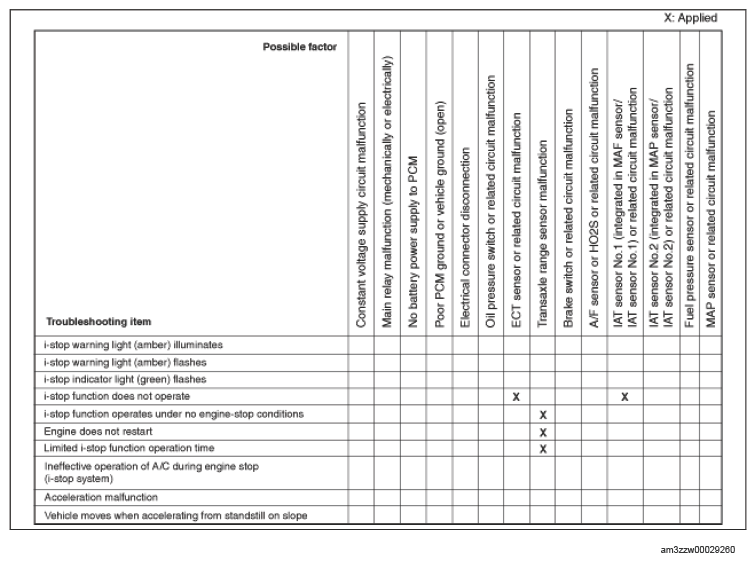

G14584656

Courtesy of MAZDA MOTORS CORP.

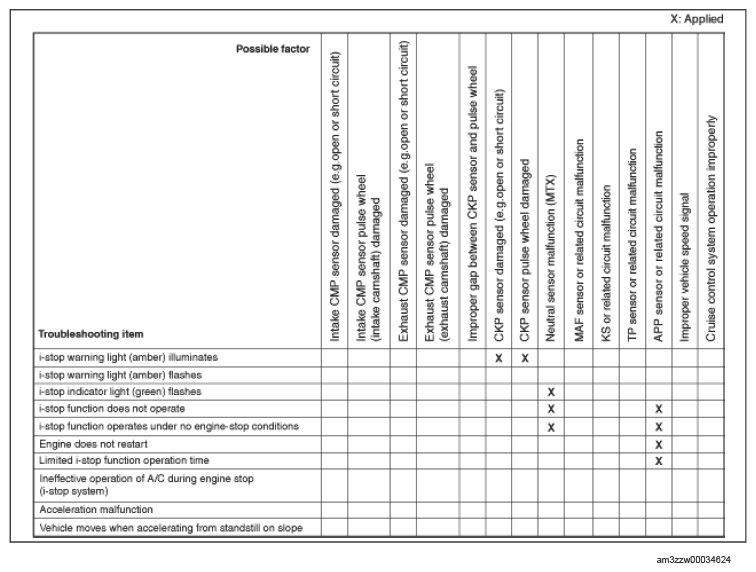

G14584657

Courtesy of MAZDA MOTORS CORP.

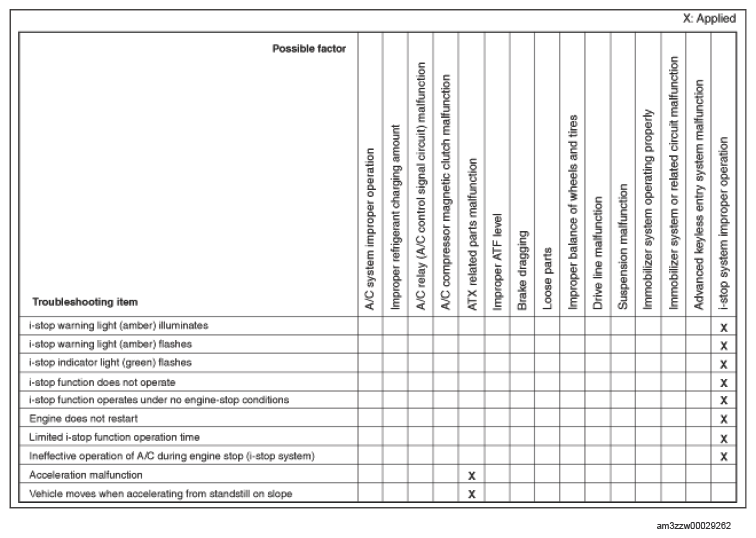

G14584658

Courtesy of MAZDA MOTORS CORP.

G14584659

Courtesy of MAZDA MOTORS CORP.

G14584660

Courtesy of MAZDA MOTORS CORP.
