Body Control Module (BCM) Bracket Removal/Installation (Us)

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION (US) .)
6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
7. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
8. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
9. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
10. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
11. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
12. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
13. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
14. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
15. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
16. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
17. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
18. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
19. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
20. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
21. Light switch (See LIGHT SWITCH INSPECTION (US) .)
22. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)
23. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
24. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
25. Cowl side woofer (LH) (See COWL SIDE WOOFER REMOVAL/INSTALLATION (US) .)
26. Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)

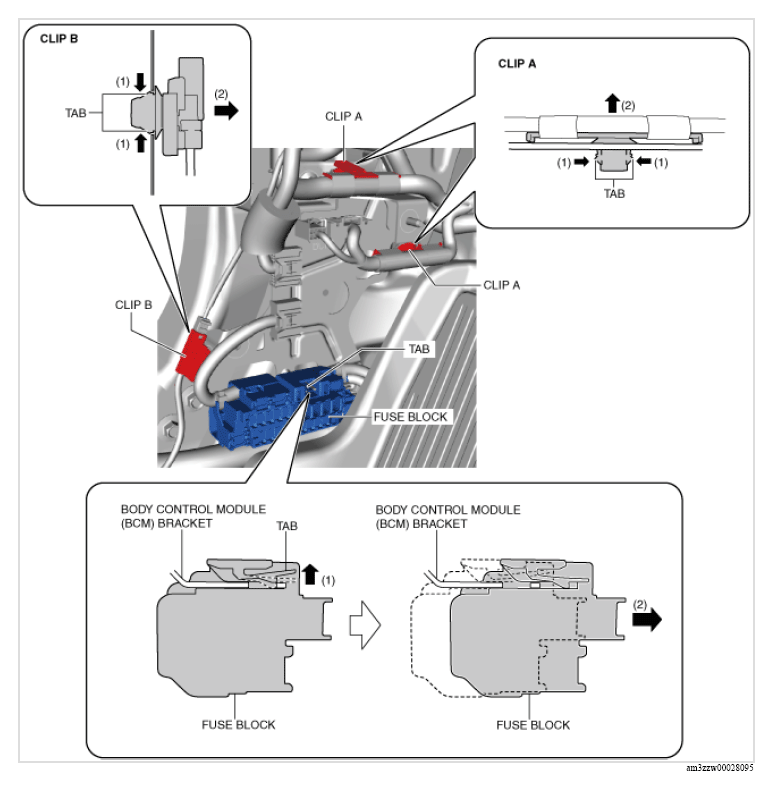

While pressing the fuse block tab in the direction of arrow (1) shown in the figure, move the fuse block in the direction of arrow (2) and detach the fuse block tab from the body control module (BCM) bracket.

Courtesy of MAZDA MOTORS CORP.
Remove the clips A and B.
Remove the bolts.

Fig 1: Body Control Module (BCM) Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Move the body control module (BCM) bracket in the direction of the arrow shown in the figure and detach the body control module (BCM) bracket hook from the body.
Remove the body control module (BCM) bracket.
Install in the reverse order of removal.
