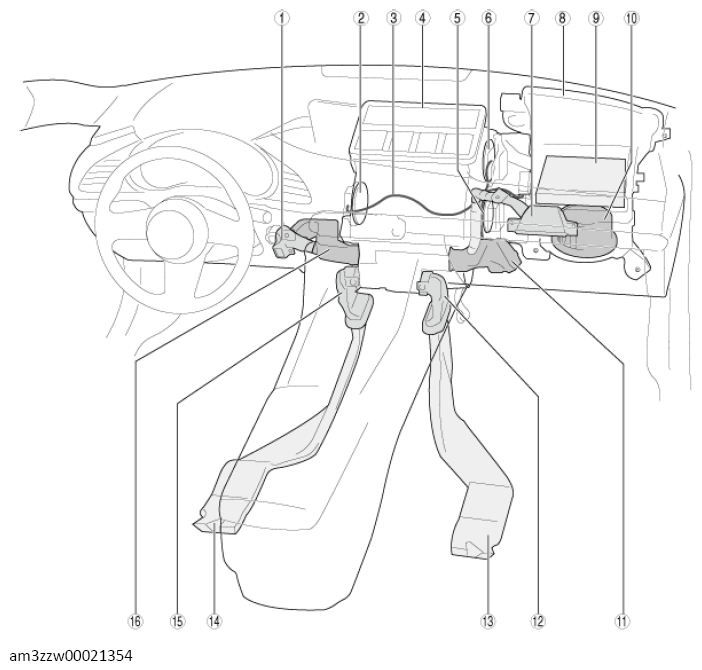

Structural View

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Driver-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
2	Driver-side air mix main link (full-auto air conditioner) (See AIR MIX MAIN LINK REMOVAL/INSTALLATION .)
3	A/C unit short-cord (See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION (US) .)
4	A/C unit (See A/C UNIT REMOVAL/INSTALLATION (US) .) (See A/C UNIT DISASSEMBLY/ASSEMBLY (US) .)
5	Passenger-side air mix main link (See AIR MIX MAIN LINK REMOVAL/INSTALLATION .)
6	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION .)
7	Passenger-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
8	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION (US) .) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY (US) .)
9	Air filter (See AIR FILTER REMOVAL/INSTALLATION (US) .) (See AIR FILTER INSPECTION .)
10	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION (US) .) (See BLOWER MOTOR INSPECTION (US) .)
11	Passenger-side front heat duct No. 1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
12	Passenger-side rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
13	Passenger-side rear heat duct No. 2 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
14	Driver-side rear heat duct No. 2 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
15	Driver-side rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
16	Driver-side front heat duct No. 1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
