Adjuster Anchor Removal/Installation: Notes

WARNING:
  • The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery terminal or work carefully, avoiding excessive impact to the lower part of the B-pillar.
  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  3. Set the front seat belt adjuster to the lowest position.
  4. Remove the following parts:
    1. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    2. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  5. Remove the bolt.

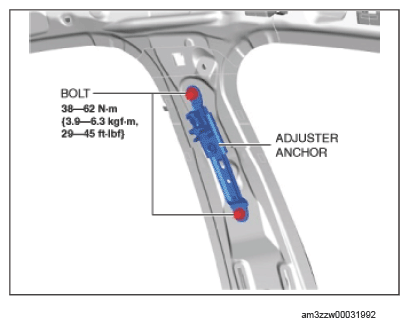

    Fig 1: Adjuster Anchor And Bolt With Torque Specification
    G14582587Courtesy of MAZDA MOTORS CORP.
  6. Remove the adjuster anchor.
  7. Install in the reverse order of removal. (See Bolt Installation Note .)
