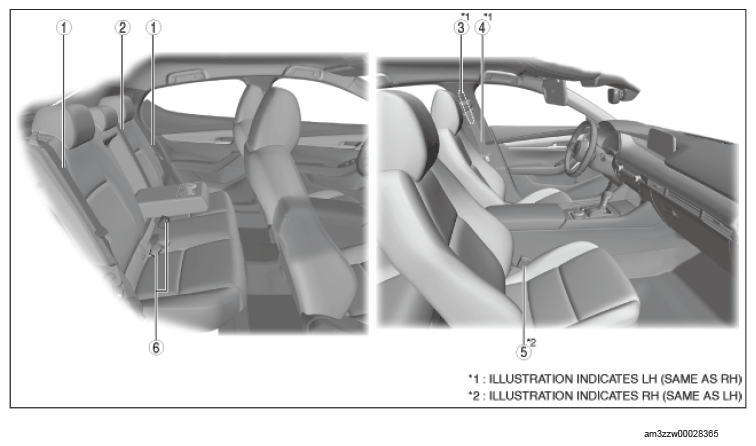

Structural View

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

Component no.	Refer to
1	Rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION [(US)] .) (See SEAT BELT INSPECTION [(US)] .)
2	Rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION [(US)] .)
3	Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
4	Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION [(US)] .)
5	Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION [(US)] .) (See BUCKLE SWITCH INSPECTION [(US)] .)
6	Rear buckle (See REAR BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION [(US)] .)
