Joint Cover Installation Note

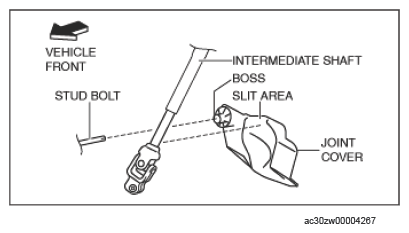

  1. Assemble the boss of the joint cover to the stud bolt on the vehicle side.
    G14581936Courtesy of MAZDA MOTORS CORP.

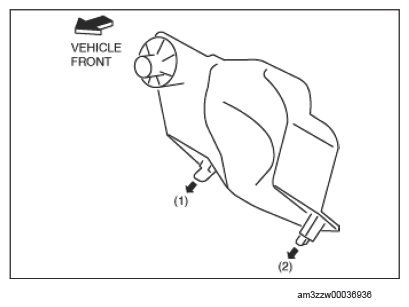

  2. Engage the tabs in the order of arrows (1) and (2) shown in the figure.
G14581937Courtesy of MAZDA MOTORS CORP.
