Steering Wheel Bezel Installation Note

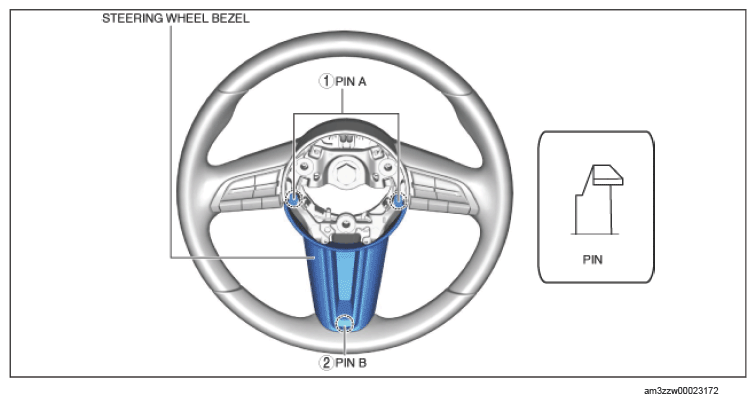

  1. Assemble the steering wheel bezel pins A and B to the steering wheel in the order shown in the figure.
G14581990Courtesy of MAZDA MOTORS CORP.
