Tie-Rod End Inspection

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Remove the tie-rod end. (See TIE-ROD END REPLACEMENT .)

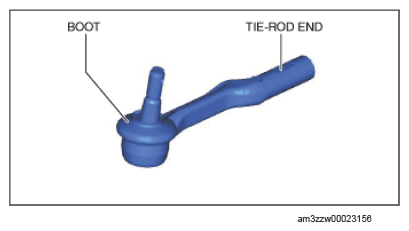

3. Inspect the tie-rod end for damage and the boot for cracks.

   Courtesy of MAZDA MOTORS CORP.

   • If there is a malfunction, replace the tie-rod end. (See TIE-ROD END REPLACEMENT .)
4. Inspect the tie-rod end for excessive play.
   • If there is a malfunction, replace the tie-rod end. (See TIE-ROD END REPLACEMENT .)
5. Rotate the ball joint of the tie-rod end 5 times.

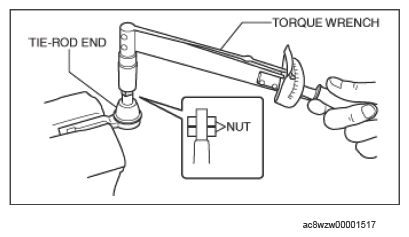

6. Install 2 nuts to the ball joint and measure the rotation torque of the tie-rod end using a torque wrench.

Courtesy of MAZDA MOTORS CORP.

Tie-rod end rotation torque

0.5-3.5 N.m {5.1-35 kgf.cm, 4.5-30 in.lbf}

• If not within the standard, replace the tie-rod end. (See TIE-ROD END REPLACEMENT .)
