Tie-Rod End Replacement: Installation

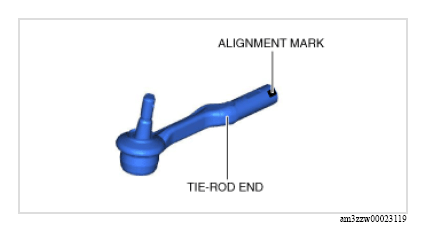

Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

Courtesy of MAZDA MOTORS CORP.

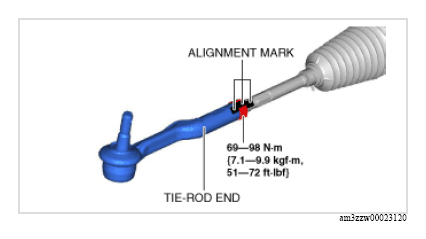

Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

Fig 1: Tie-Rod End Locknut With Torque Specification
Courtesy of MAZDA MOTORS CORP.

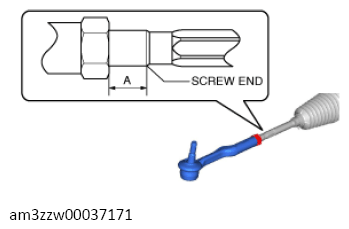

Verify that dimension A shown in the figure is within the standard.

Courtesy of MAZDA MOTORS CORP.

Standard

5.8-18.8 mm {0.23-0.74 in}
- If not within the standard, make adjustments so that dimension A is within the standard.

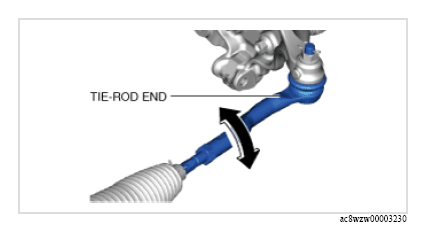

Install the tie-rod end to the steering knuckle.

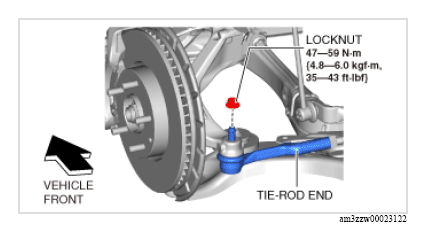

Fig 2: Tie-Rod End And Locknut With Torque Specification
Courtesy of MAZDA MOTORS CORP.

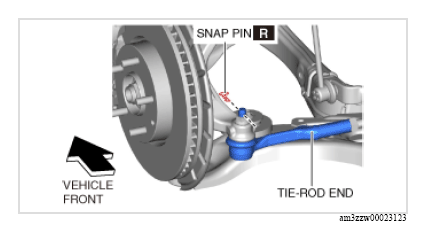

Install a new snap pin.

Courtesy of MAZDA MOTORS CORP.
Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)

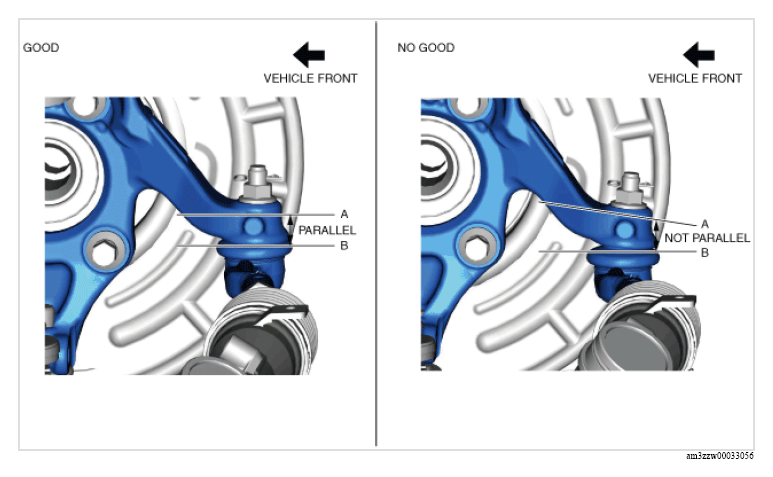

Verify that A and B shown in the figure are parallel while the vehicle is on the ground.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Install the tie-rod end to the correct position. Otherwise, it could cause cracks on the tie-rod end boot.
- If the installation position is not correct, perform the adjustment using the following procedure.
1. Adjust the tie-rod end by rotating it so that it is at the correct position.
Courtesy of MAZDA MOTORS CORP.
After installation, inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT [(US)] .)
