Tie-Rod End Replacement: Removal

  1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)

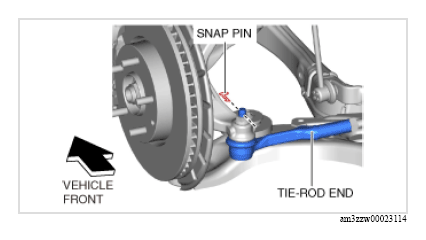

  2. Remove the snap pin from the tie-rod end.
    G13177111Courtesy of MAZDA MOTORS CORP.

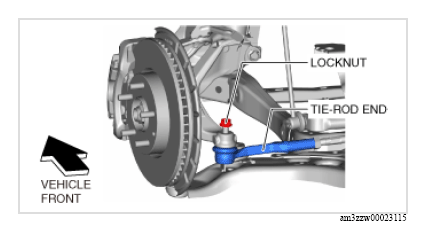

  3. Loosen the locknut of the tie-rod end.
    G13177112Courtesy of MAZDA MOTORS CORP.

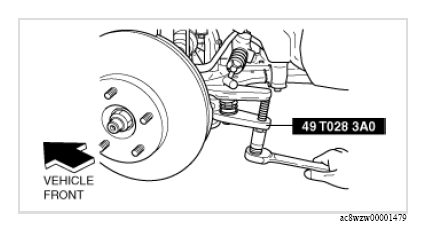

  4. Detach the tie-rod end from the steering knuckle using the SST.
    G13177113Courtesy of MAZDA MOTORS CORP.

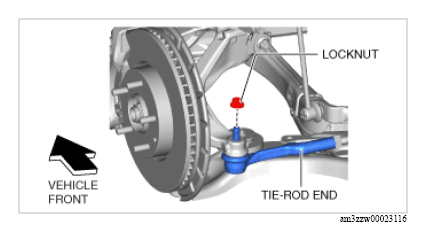

  5. Remove the locknut of the tie-rod end.
    G13177114Courtesy of MAZDA MOTORS CORP.

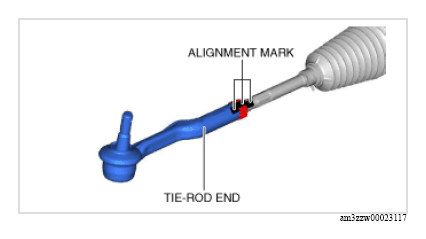

  6. Place alignment marks as shown in the figure for reference in tie-rod end assembly.
    G13177115Courtesy of MAZDA MOTORS CORP.
  7. Remove the tie-rod end.
G13177116Courtesy of MAZDA MOTORS CORP.
