Quarter Window Glass Removal

Replacement Part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
2. Remove the following parts:
   1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
   2. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
   3. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

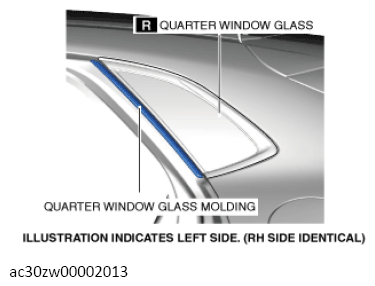

3. Cut the quarter window glass molding shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

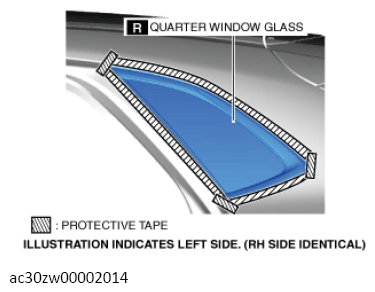

4. Apply protective tape along the edge of the body and the quarter window glass.

   Courtesy of MAZDA MOTORS CORP.

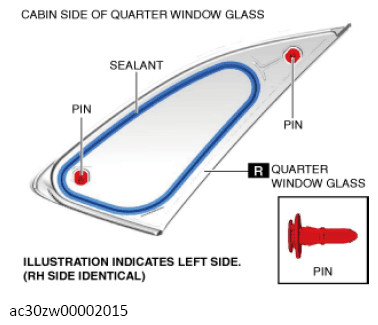

5. Pass the piano wire from the cabin side through the sealant so that the piano wire does not interfere with the pin.

   Courtesy of MAZDA MOTORS CORP.

6. Wind both ends of the piano wire using the piano wire grips.
7. Secure one end of the piano wire, and while pulling the other end, cut the sealant around the quarter window glass.
   NOTE:

   • Use a long sawing action to spread the work over the whole length of the piano wire to prevent it from breaking due to localized heating.

   Courtesy of MAZDA MOTORS CORP.

8. Pull the quarter window glass outward and detach the pins from the body.
