Mazda
>>
2022
>>
CX-30 Select
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (VIN L)
>>

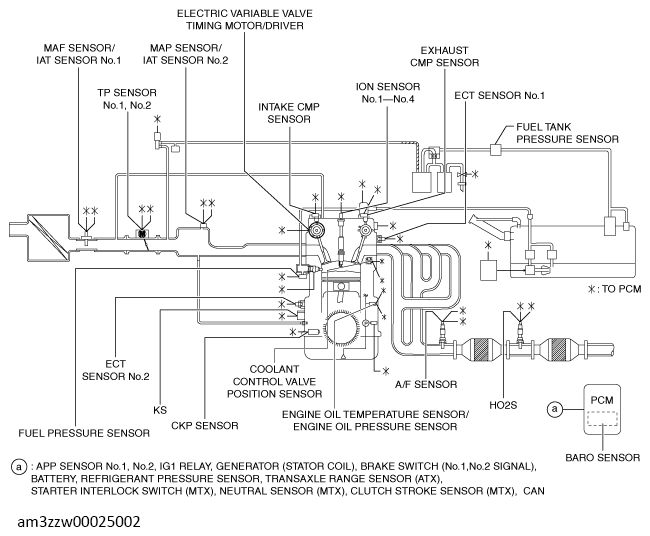

Control System Diagram
>>
U.S.A. and CANADA
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
U.S.A. and CANADA
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
