Resistance Inspection: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the boost air temperature sensor. (See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)

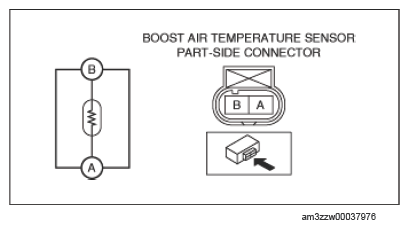

  3. Measure the resistance between boost air temperature sensor terminals A and B.
    G14580060Courtesy of MAZDA MOTORS CORP.
