Drive Selection Switch Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

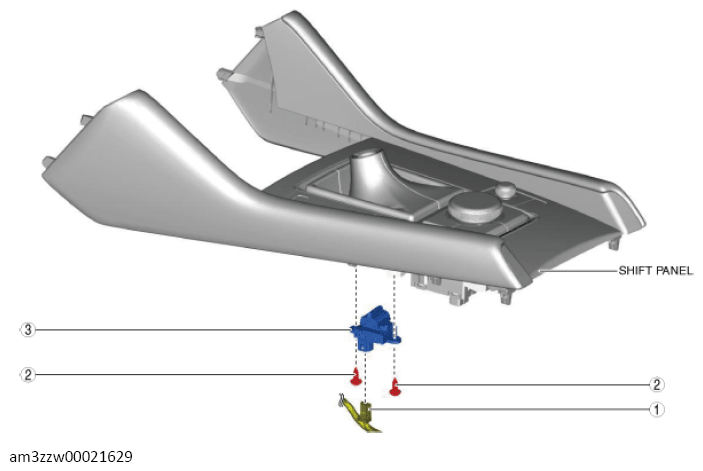

DRIVE SELECTION SWITCH COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Drive selection switch connector |
| 2 | Screw |
| 3 | Drive selection switch |
