PCM Component Installation Note

Install the PCM component using the following procedure:

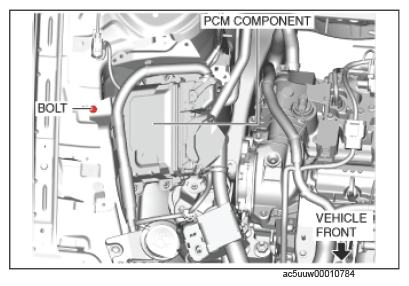

Temporarily tighten the bolt shown in the figure.

Courtesy of MAZDA MOTORS CORP.

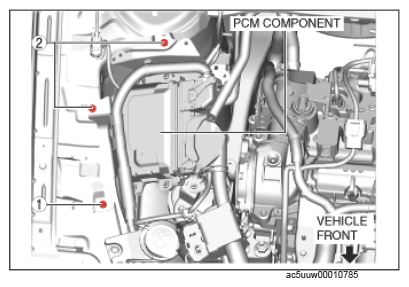

Tighten the PCM component installation bolts in the order shown in the figure.

Fig 1: PCM Component Installation Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

9-10 Nm {92-101 kgfcm, 80-88 in.lbf}

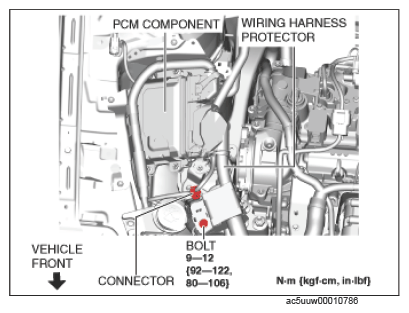

Install the wiring harness protector and connector.

Fig 2: Wiring Harness Protector, Connector, PCM Component And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

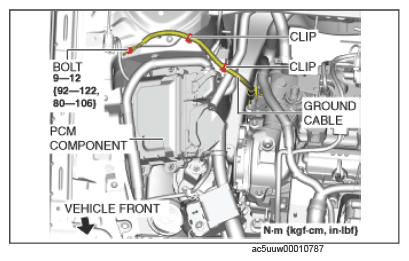

Install the ground cable shown in the figure.

Fig 3: PCM Component, Ground Cable, Clips And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
