Resistance Inspection: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the boost pressure sensor/boost air temperature sensor. (See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)

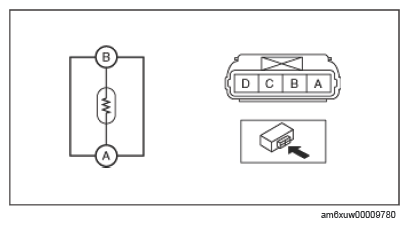

- Measure the resistance between boost pressure sensor/boost air temperature sensor terminals A and B.
- If not as specified, replace the boost pressure sensor/boost air temperature sensor. (See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
