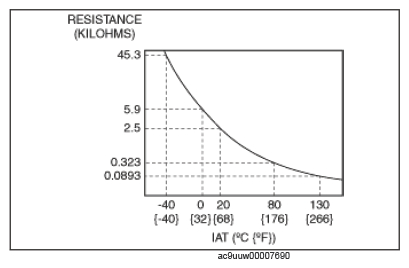

Specification (Reference)

IAT (°C {°F}) Resistance (Kilohms)
0 {32 } Approx. 5.9
20 {68 } Approx. 2.5
80 {176 } Approx. 0.323
130 {266 } Approx. 0.0893
G15630263Courtesy of MAZDA MOTORS CORP.
