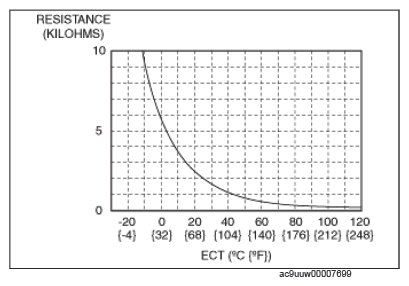

Specification (Reference)

ECT (°C {°F}) Resistance (Kilohms)
20 {68 } Approx. 2.45
80 {176 } Approx. 0.318
G15630282Courtesy of MAZDA MOTORS CORP.
