Resistance Inspection: Notes
- Turn the steering wheel to full right lock.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Lift up the vehicle.
- Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Disconnect the engine oil pressure sensor/engine oil temperature sensor connector. (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)

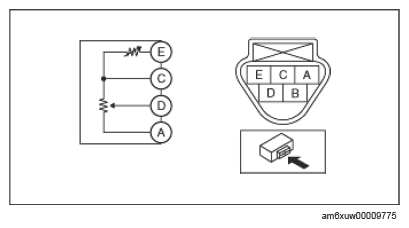

- Measure the resistance between engine oil pressure sensor/engine oil temperature sensor terminals E and C.
- If not as specified, replace the engine oil pressure sensor/engine oil temperature sensor. (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)
