Specification (Reference)

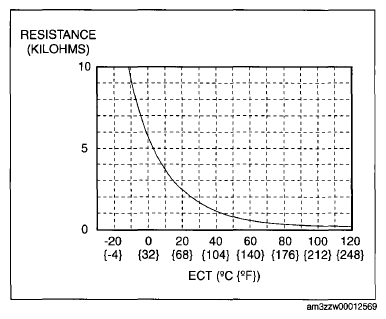

ECT SENSOR RESISTANCE SPECIFICATIONS

ECT (°C {°F}) Resistance (Kilohms)
20 {68} Approx. 2.45
80 {176} Approx. 0.318
G09074581Courtesy of MAZDA MOTORS CORP.
