Rear Door Glass Run-Channel Removal/Installation: 4SD: Notes

Replacement Part

1. Fully lower the rear door glass.
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
3. Remove the following parts:
   1. Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
   2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
   3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
   4. Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
   5. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
   6. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
4. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
5. Connect the power window subswitch connector.
6. Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
7. Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
8. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
9. Disconnect the power window subswitch connector.

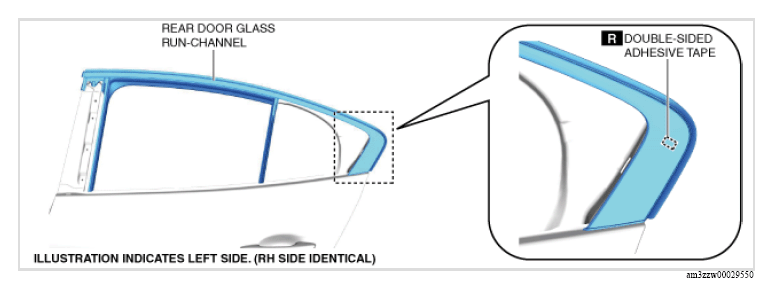

10. Remove the double-sided adhesive tape in the position shown in the figure below using the utility knife.

    Courtesy of MAZDA MOTORS CORP.

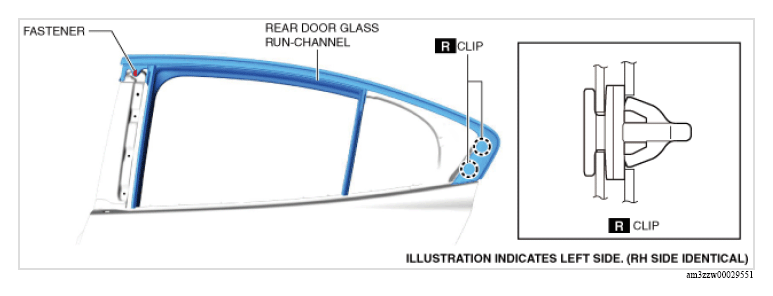

11. Remove the fastener.

    Courtesy of MAZDA MOTORS CORP.

12. Using a remover tool, detach the clips.

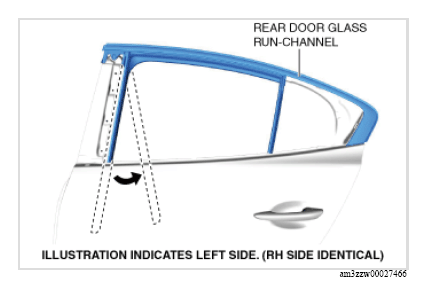

13. Partially peel back the rear door glass run-channel.

    Courtesy of MAZDA MOTORS CORP.

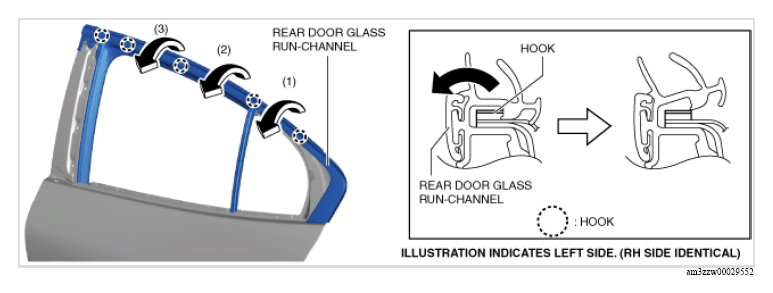

14. Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure below and remove it from the rear door hooks.

    Courtesy of MAZDA MOTORS CORP.

15. Remove the rear door glass run-channel.
16. Install in the reverse order of removal. (See REAR DOOR GLASS RUN-CHANNEL INSTALLATION NOTE .)
