Generator Removal Note
NOTE:

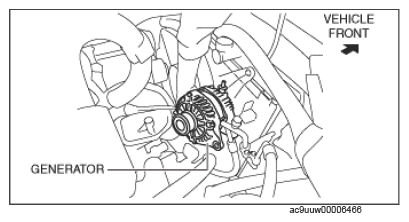

Remove the generator from above the engine compartment.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
